Product Introduction
WOOBANG HITECH manufactures machines by directly welding, bending, laser cutting,
processing (milling machines, lathes), and assembling raw materials.
Washers

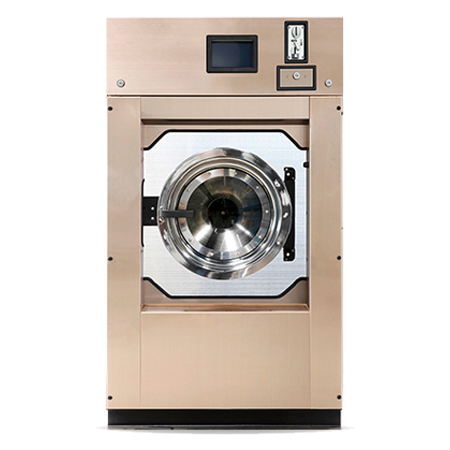

WW-150
- Capacity
- 15Kg
- SIZE(W * D * H)
- 880*1020*1540mm
- Electrical Specifications
- AC220V Single Phase
- Motor (HP)
- 2HP
- Inverter (HP)
- 3HP
- Power Consumption
- 1.5KW
- Inner Tub SIZE
- 660*470
WW-250
- Capacity
- 25Kg
- Basket Specifications (Diameter*Width)
- 750*550mm
- External Dimensions (Width*Depth*Height)
- 1,100*1,200*1,570mm
- Motor (HP)
- 5HP/4P
- Power Supply (V)
- 3phase 380V
- Inverter Capacity (HP)
- 5HP/3.7Kw
- Electrical Consumption
- 3.7KW

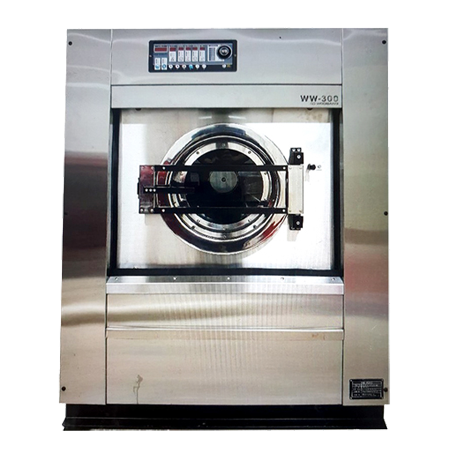

WW-300
- Capacity
- 30Kg
- Basket Specifications (Diameter*Width)
- 860*550mm
- External Dimensions (Width*Depth*Height)
- 1,270*1,300*1,650mm
- Motor (HP)
- 7.5HP/4P
- Power Supply (V)
- 3phase 380V
- Inverter Capacity (HP)
- 10HP/7.5Kw
- Electrical Consumption
- 5.5KW

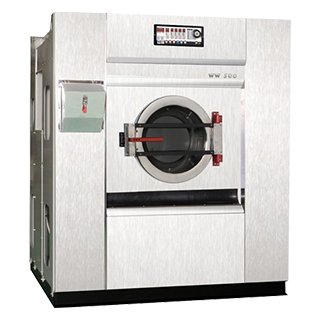

WW-500
- Capacity
- 50Kg
- Basket Specifications (Diameter*Width)
- 1,070*550mm
- External Dimensions (Width*Depth*Height)
- 1,530*1,350*1,770mm
- Motor (HP)
- 10HP/4P
- Power Supply (V)
- 3phase 380V
- Inverter Capacity (HP)
- 15HP/11Kw
- Electrical Consumption
- 7.5KW
WW-1000
- Capacity
- 100Kg
- Basket Specifications (Diameter*Width)
- 1,300*700mm
- External Dimensions (Width*Depth*Height)
- 1,800*1,700*2,140mm
- Motor (HP)
- 25HP/4P
- Power Supply(V)
- 3phase 380V
- Inverter Capacity (HP)
- 30HP/22Kw
- Electrical Consumption
- 18.7KW
Dryers

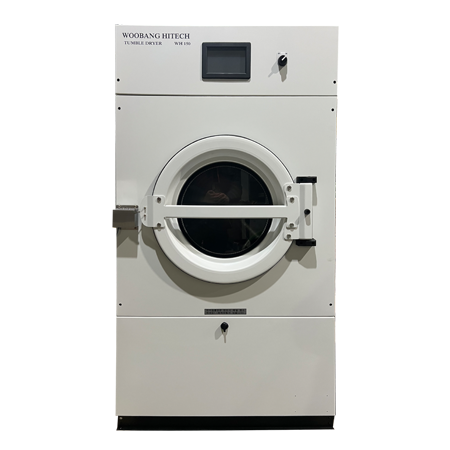

WH-150
- Capacity
- 15Kg
- Basket Specifications (Diameter*Width)
- 800*570mm
- External Dimensions (Width*Depth*Height)
- 900*930*1,650mm
- Motor (HP)
- Fan: 1/2 HP, 4P Drum: 1/2HP, 4P
- Power Supply(V)
- 3phase 380V
- Inverter Capacity (HP)
- Electric Heater:11Kw
- Electrical Consumption
- 12KW

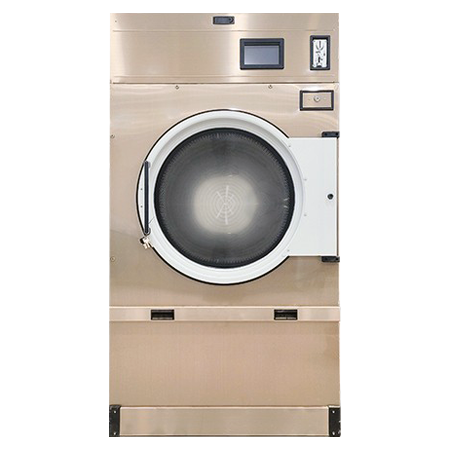

WH-250
- Capacity
- 25Kg
- Basket Specifications (Diameter*Width)
- 900*780mm
- External Dimensions (Width*Depth*Height)
- 1,020*1,300*1,800mm
- Motor (HP)
- Fan: 1 HP, 4P Drum: 1HP, 4P
- Power Supply (V)
- 3phase 380V
- Inverter Capacity (HP)
- Electric Heater:20KW
- Electrical Consumption
- 22KW

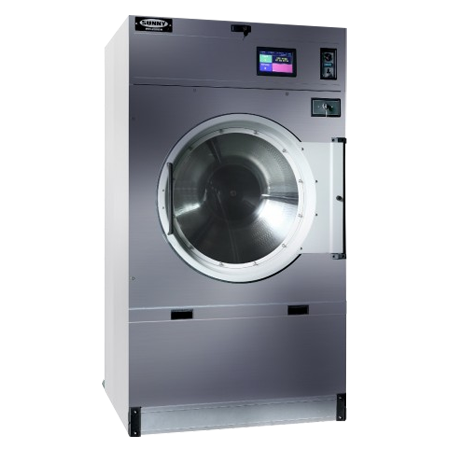

WH-300
- Capacity
- 30Kg
- Basket Specifications (Diameter*Width)
- 900*950mm
- External Dimensions (Width*Depth*Height)
- 950*1,450*1,800mm
- Motor (HP)
- Fan: 1HP, 4P Drum: 1HP, 4P
- Power Supply(V)
- 3phase 380V
- InvertElectric
- HeaterElectric Heater:22KW
- Electrical Consumption
- 24KW

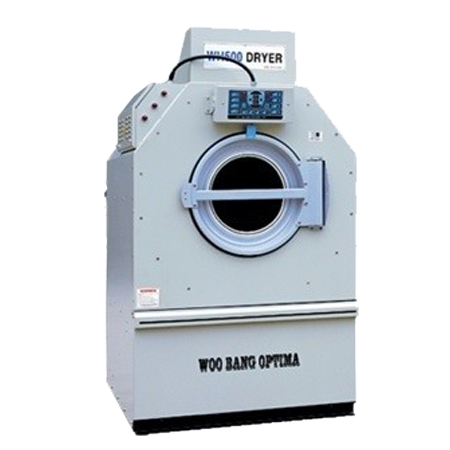

WH-500
- Capacity
- 50Kg
- Basket Specifications (Diameter*Width)
- 1,070*1,050mm
- External Dimensions (Width*Depth*Height)
- 1,200*1,600*2,100mm
- Motor (HP)
- Fan: 2 HP, 4P Drum: 2HP, 4P
- Power Supply(V)
- 3phase 380V
- Inverter Capacity (HP)
- Heater 33Kw Inverter 2
- Electrical Consumption
- 36KW

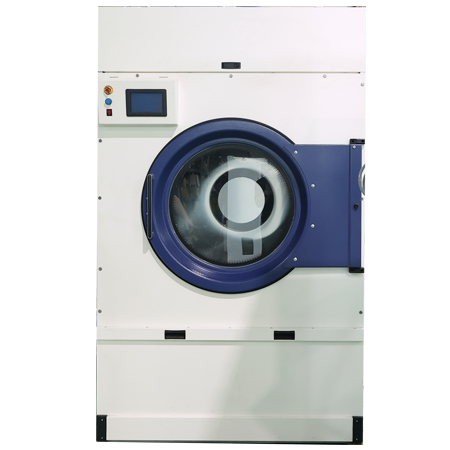

WH-600
- Single Drying Capacity
- 60Kg
- SIZE(W*D*H)
- 1294*1500*2170mm
- Cylinder Specifications
- Height 1200mm, Depth 970mm
- Cylinder Drive Motor
- 1.5kw/4P, Forward/Reverse Rotation (Inverter Control)
- Exhaust Fan Motor
- 0.75kw / 4P
- Exhaust Duct Pipe Specifications
- 250Ø
- Power Supply
- 3Ø/380V/ 8A(Current)/60Hz
- Fuel Type
- LPG
- Gas Consumption
- 67KW(4.79Kg/hr)

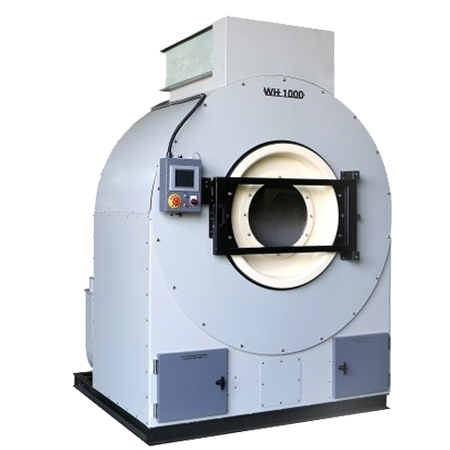

WH-1000
- Capacity
- 100Kg
- Basket Specifications (Diameter*Width)
- 1,570*950mm
- External Dimensions (Width*Depth*Height)
- 1,740*1,620*2,540mm
- Motor (HP)
- Fan:3 HP, 4PDrum:3HP, 4P
- Power Supply(V)
- 3phase 380V
- Inverter Capacity (HP)
- Heater68Kw Inverter3
- Electrical Consumption
- 73KW

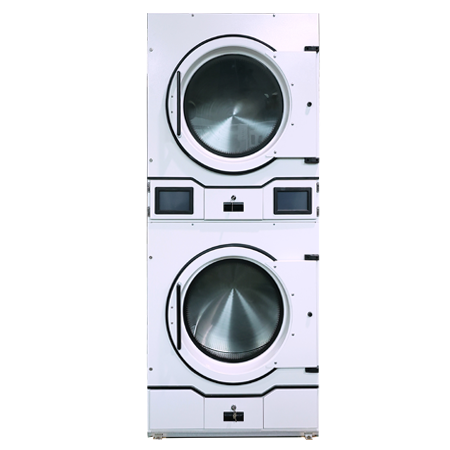

2Stage Drye
- Single Drying Capacity
- 16Kg
- SIZE(W*D*H)
- 857*1184*2033mm
- Cylinder Specifications
- Height850mm, Depth650mm
- Cylinder Drive Motor
- 0.4kw/4P/220V, Forward/Reverse Rotation (Inverter Control)
- Exhaust Fan Motor
- 0.3kw / 4P / 220V (Inverter Control)
- Exhaust Duct Pipe Specifications
- 160Ø
- Power Supply
- 2Ø/220V/ 8A(Current)/60Hz
- Fuel Type
- LNG/LPG
- Gas Consumption
- LNG : 48.4KW(24,200Kg/hr)
LPG : 42.7KW(21,350Kg/hr)
Other Products
Fireproof clothing dryer (cabinet)
- Capacity
- Firefighting suit (Upper and Lower) 6 sets
- External Dimensions (Width*Depth*Height)
- 1,380*1,000*2,100mm
- Motor(HP)
- Fan:1HP/4P
- Power Supply(V)
- 3phase 380V
- Inverter Capacity(HP)
- Electric Heater 9KW
- Electrical Consumption
- 10KW
WD-150
- Capacity
- 15Kg
- Basket Specifications (Diameter*Width)
- 660*470mm
- External Dimensions (Width*Depth*Height)
- 1,550*1,100*1,650mm
- Motor(HP)
- 2HP/4P
- Power Supply(V)
- 220V
- Inverter Capacity (HP)
- 3HP/2.2Kw
- Electrical Consumption
- 1.5KW

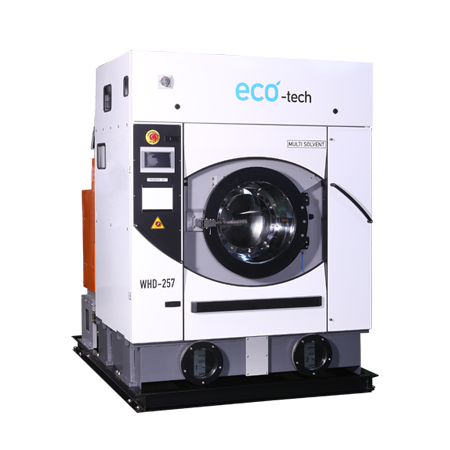

Hydro carbon
- Capacity
- 22kg (2tanks 1tanks 208L 2tanks 208L)
- SIZE (W*D*H)
- 1524*1864*2258
- Electrical specifications
- 3phase 220V 60Hz 30A
- Drum Motor
- 5HP
- Dry Fan Motor
- 2HP
- Vacuum pump Moto
- 2HP
- Inner Size(W*D)
- 900*480
